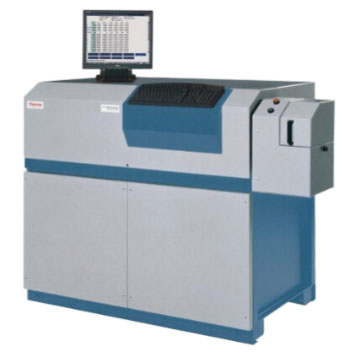

Swiss ARL3460 spectrometer

The measurable matrices include: steel, cobalt, nickel, aluminum, copper, lead, zinc, tin, magnesium, etc
The minimum thickness of the measured sample is 0.05-0.1mm, depending on the material being analyzed
Measure the diameter of the sample to be 3mm。

Electronic universal testing machine

Applied to: tensile, compressive, bending, shear and other force testing< Br> Maximum test force: 200KN
Accuracy level: 0.5
Relative error of test force indication: ± 0.5%
Displacement resolution: 0.014 μ M
Relative error of displacement rate: within 0.5%
Effective test width: 650mm
Effective test space: 1200mm

Computer metallographic analyzer

Suitable for metallographic analysis of materials such as ductile iron, gray iron, stainless steel, etc< Br> Metallographic microscope parameters:
Optical system: Infinite color difference correction system
Standard magnification: 50-500 times
Microscope imaging system: imaging industrial camera
Other: Objective micrometer (10um)

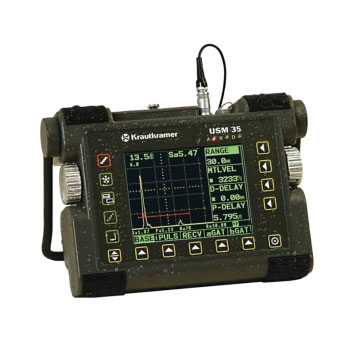

German GE ultrasonic flaw detector

Measurement range: 4-14108mm (555 ″), longitudinal wave
Resolution: 800 * 480 pixels
Display displacement: -15-3500 μ S
Probe delay: 0-1000 μ S
Sound speed range: 250-16000m/s
Pulse repetition frequency: automatically optimized 15-2000Hz
Measurement mode: peak, wing, J-wing, first peak

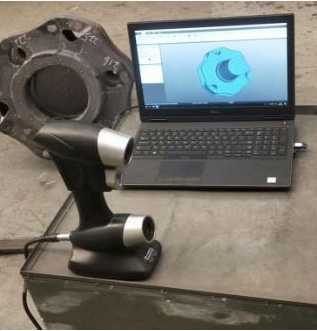

3D scanner

Be able to complete the application of various size workpieces, Reverse engineering and three-dimensional inspection of shapes and surfaces Performance:
1. Scanning area: 275X250mm
2. Measurement rate: 480000 measurements per second
3. Light source: 7 laser crosshairs (+1 additional beam)
4. Laser category: Class II (eye safety)
5. Scanning accuracy: up to 0.03mm
6. Volume accuracy: 0.03+0.06mm/m
7. Depth of field: 260mm (automatic)

---

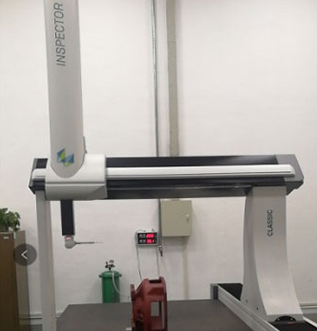

Three coordinate detector

Detection performance: High detection efficiency, maximum detection error of 3.4um, and efficient 3D visualization software collaboration software< Br> Measurement size:
① Length 1.5M * Width 1.2M * Height 1M
② Length 1M * Width 0.7M * Height 0.7M
③ Length 2.2M * Width 1.5M * Height 1.2M
